US 10,935,294 C1 (12,991st)
Bottle with an ice cube mould
Chenning Li, Ningbo (CN); and Haidong Hu, Ningbo (CN)
Filed by Ningbo Vacane Household Commodities Co., Ltd., Ningbo (CN)
Assigned to NINGBO VACANE HOUSEHOLD COMMODITIES CO., LTD., Ningbo (CN)
Reexamination Request No. 90/019,720, Nov. 4, 2024.
Reexamination Certificate for Patent 10,935,294, issued Mar. 2, 2021, Appl. No. 16/930,871, Jul. 16, 2020.
Claims priority of application No. 202010318672.2 (CN), filed on Apr. 21, 2020.
Ex Parte Reexamination Certificate issued on Jul. 23, 2025.
Int. Cl. F25C 1/22 (2018.01); F25C 1/06 (2006.01)
CPC F25C 1/22 (2013.01) [F25C 1/06 (2013.01)]

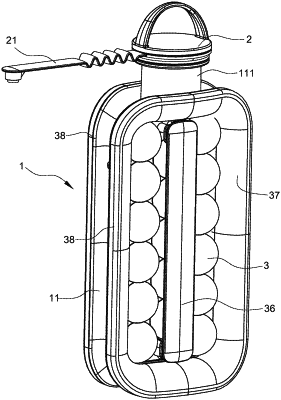

OG exemplary drawing
AS A RESULT OF REEXAMINATION, IT HAS BEEN DETERMINED THAT:
Claims 1-9 are cancelled.
1. A bottle with an ice cube mould, comprising:
a bottle body with a neck;
a lid disposed on the neck;
wherein, the bottle body has two ice-making plates opposite with each other, at least one of the two ice-making plates has a plurality of recesses, at least one of the two ice-making plates has a handle disposed on an external surface of the ice-making plate for pulling the ice-making plate outward; and
the two ice-making plates are capable of moving relative to each other, the two ice-making plates facing each other is defined as a closed state, the two ice-making plates spaced apart from each other is defined as an opened state;
when the two ice-making plates are at the closed state, two recesses facing each other form an ice-making space, a water inlet in communication with the neck is formed on between the two ice-making plates, and a water flow channel for guiding water coming from the water inlet to the ice-making space is formed between the two ice-making plates;
when the two ice-making plates are at the opened state, a chamber of the bottle body is defined between the two ice-making plates, and ice cubes formed inside the recesses drop into the chamber of the bottle body.
